A strain gage has a nominal resistance of 120 Ω and agage factor of 2

Subject:Mechanical EngineeringPrice:2.87 Bought7

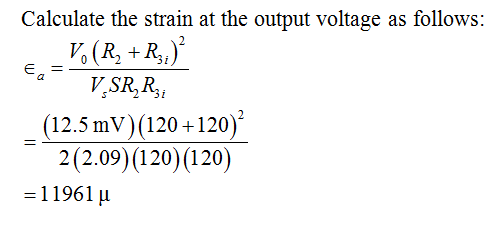

A strain gage has a nominal resistance of 120 Ω and agage factor of 2.09. If it is used in a quarter bridge with theother resistors being 120 Ω and with a supply voltage of2V, what will be the strain if Vo is 12.5 mV ?
