In Java Programming , A multi-threading application wants to share a common object among multiple thread.

Define the possible solution that can provide an efficient implementation to access sharable object.

Is it possible to share a common variable that can control the execution of multiple threads?

Justify your answer with suitable examples.

Answer:

Shared Object in Multi-threading:

A single object can share between multiple or different threads. Here, there is no possible way to save the state because other threads were also aware of the current state.

For example:

//create class
public class TestThread
{
	//main method
    public static void main(String[] args)
    {
    	//Initialize an object for the class SharedObj
        SharedObj so = new SharedObj();
        //initialize Thread1 and call the start() method
        new Thread(so, "Thread 1").start();
        //Initialize Thread2 with the same object so
        new Thread(so, "Thread 2").start();
    }
}
//create class SharedObj which implements the Runnable interface
class SharedObj implements Runnable
{
	//initialize the variable VALUE
    private static final int VALUE = 10;
    //Initialize ThreadLocal
    private static final ThreadLocal<Integer> TL = new ThreadLocal<Integer>()
    {
    	//override the method initialValue()
        @Override
        protected Integer initialValue()
        {
            return 0;
        }
    };
    //override the method run()
    @Override
    public void run()
    {
    	//for loop iterate till VALUE=9
        for (int i = 0; i < VALUE; i++)
        {
        	//synchronized the threads
            synchronized (TL)
            {
                //get the value from the ThreadLocal
                int value = TL.get();
                //print the current thread name and the value
                System.out.println(Thread.currentThread().getName() + ": " + value);
                //set the value for ThreadLocal
                TL.set(value + 1);
                //try block to throw exception
                try
                {
                	//notify all the threads
                    TL.notifyAll();
                    //if the value of variable VALUE-1 is less then i then move the current thread to waiting state
                    if (i < VALUE - 1)
                    {
                        TL.wait();
                    }
                }
                //catch the exception
                catch (InterruptedException ex)
                {
                }
            }
        }
    }
}

In the above code, the object so for the class SharedObj is shared between Thread1 and Thread2.

Shared Variable in Multi-threading:

Like an object, a variable can also be shared by different threads.

For example:

//create class
public class TestThread
{
	//initialize the variable a
	static int a = 0;
	//main method
	public static void main(String[] args)
	{
		//Initialize the class TestThread
		TestThread tt = new TestThread();
		//initialize the inner class Class1 by using the object tt
		Class1 c1 = tt.new Class1();
		//initialize the inner class Class2 by using the object tt
		Class2 c2 = tt.new Class2();
		//initialize the object o1 in class Class1 by using the class Lock object lock1
		c1.o1 = Lock.lock1;
		//initialize the object o2 in class Class1 by using the class Lock object lock2
		c1.o2 = Lock.lock2;
		//initialize the object o1 in class Class2 by using the class Lock object lock2
		c2.o1 = Lock.lock2;
		//initialize the object o2 in class Class2 by using the class Lock object lock1
		c2.o2 = Lock.lock1;
		//Initialize the thread t1 and t2 using c1 and c2
		Thread t1 = new Thread(c1);
		Thread t2 = new Thread(c2);
		//start the thread t1 and t2
		t1.start();
		t2.start();
	}
	//static class
	static class Lock
	{
		//initialize two objects lock1 and lock2
	    final static Object lock1 = new Object();
	    final static Object lock2 = new Object();
	}
	//inner class implements the runnable interface
	class Class1 implements Runnable
	{
		//initialize object with o1,o2
	    Object o1;
	    Object o2;
	    //run method
	    public void run()
	    {
	    	//while loop iterates till a value reaches 9
	        while (TestThread.a < 10)
	        {
	        	//try block
	            try
	            {
	            	//print a value and the class name
	                System.out.println(++TestThread.a + " Class1 ");
	                synchronized (o1)
	                {
	                	//notify object o1
	                    o1.notify();
	                }
	                synchronized (o2)
	                {
	                	//o2 to waiting state
	                    o2.wait();
	                }
	            }
	            //catch block
	            catch (InterruptedException ie)
	            {
	                ie.printStackTrace();
	            }

	        }
	    }
	}
	//inner class Class2
	class Class2 implements Runnable
	{
		//initialize objects o1 and o2
	    Object o1;
	    Object o2;
	    //method run()
	    public void run()
	    {
	    	//iterates till a value becomes 9
	        while (TestThread.a < 10)
	        {
	        	//try block
	            try
	            {
	                synchronized (o2)
	                {
	                	//o2 to waiting state
	                    o2.wait();
	                    //print a value and the class name
	                    System.out.println(++TestThread.a + " Class2 ");
	                }
	                synchronized (o1)
	                {
	                	//notify object o1
	                    o1.notify();
	                }
	            }
	            //catch block
	            catch (InterruptedException ie)
	            {
	                ie.printStackTrace();
	            }

	        }
	    }
	}
}

In the above example, the variable a is incremented by the thread t1 and thread t2.

Step-by-step explanation

Shared Object in Multithreading:

• The object is passed as a parameter for the class Thread. There are two threads Thread1 and Thread2 both call the method start() that invokes the run() method in the class SharedObj.

• The method run() prints the current thread name and the value of the variable value.

• The variable value is initialized by the returning value of the method initialValue() in the class ThreadLocal.

• Every time the function invokes an initial value is set as the incremented value of the variable value.

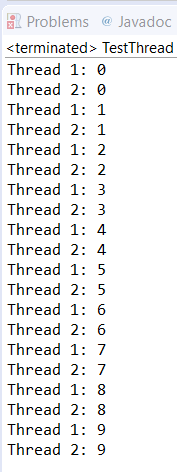

Snip of the Output:

PFA
