question archive Indicate whether or not each of the following structures is considered to be aromatic

Indicate whether or not each of the following structures is considered to be aromatic

Subject:ChemistryPrice:2.85 Bought3

Indicate whether or not each of the following structures is considered to be aromatic. A is aromatic, B is not. B is aromatic, A is not. Both A and B are aromatic. A and B are not aromatic.

pur-new-sol

Purchase A New Answer

Custom new solution created by our subject matter experts

GET A QUOTE

Answer Preview

Huckel’s Rule for Aromaticity is defined as,

Any Cyclic, highly conjugated, planar structure containing [4n+2] pi electrons (n = whole number 0,1,2………. And not the ring number) is Aromatic in nature and has extraordinary stability.

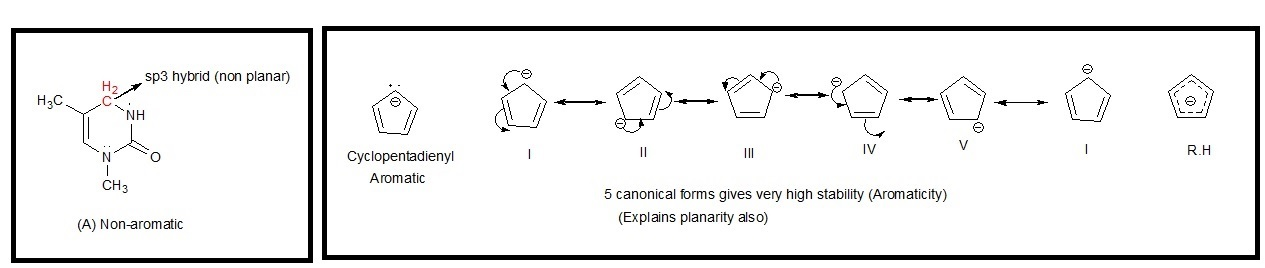

In (A) 1 C is sp3 hybridized and hence planarity of ring destroyed and cyclic conjugation also not possible hence (A) is Non-aromatic in nature.

In (B) –It’s a cyclic 5 C system 4 C which are doubly bonded are sp2 hybridized (4 pi electrons) and 1 C a carbanion which though sp3 hybridised but as conjugates its lone pair of electron in pi electron system gets planarity. Also 4 pi electrons + 2 electrons in –ve charge on carbanion makes total of 6 electrons i.e [4n+2] electrons (n = 1 makes it =4 x1 + 2 = 6 pi electrons). Hence The cyclopentadinyl anion is a Cyclic, highly conjugated, Planar structure with [4n+2] pi electrons system and thus is Aromatic by Huckel’s rule.

please see the attached file for complete soution
