Find the minimum and maximum load currents Vz=3.3v, Izk=1mA, Izm=150mA R=470ohm Vin=24v find RL=?

pur-new-sol

Purchase A New Answer

Custom new solution created by our subject matter experts

GET A QUOTE

Answer Preview

Maximum load current, Is = IL(max) + Izk

IL(max) = Is - Izk

RL(min) = Vz / IL(max)

Minimum load current, Is = IL(min) + Izm

IL(min) = Is - Izm

RL(max) = Vz / IL(min)

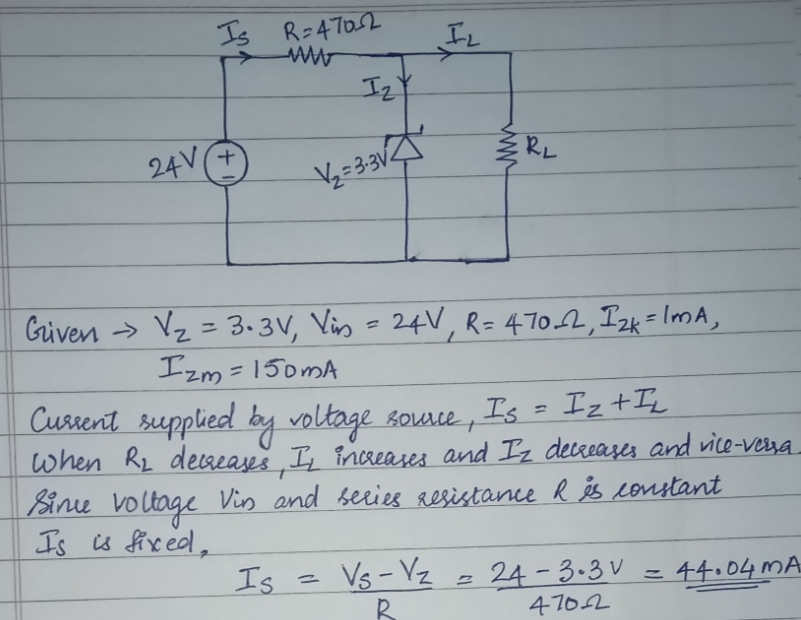

Please see the attached file for the complete solution
