question archive Given the these minterms (0, 4, 7, 8, 9, 10, 11, 13, 14, 15), write VHDL STATEMAENT for the function as a SOP
Given the these minterms (0, 4, 7, 8, 9, 10, 11, 13, 14, 15), write VHDL STATEMAENT for the function as a SOP
Subject:Electrical EngineeringPrice:2.86 Bought5
Given the these minterms (0, 4, 7, 8, 9, 10, 11, 13, 14, 15), write VHDL STATEMAENT for the function as a SOP.
Please use this Entity Declaration in formulating the statement
entity midterm is
Port( A, B, C, D : in STD_LOGIC;
F : out STD_LOGIC);
end midterm;
Purchase A New Answer
Custom new solution created by our subject matter experts
GET A QUOTE
Answer Preview
Library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity midterm is
port(A,B,C,D :in STD_LOGIC;
F : out STD_LOGIC);
end midterm;
architecture behavioral of midterm is
begin
F<=((notA)and(notC)and(notD)or((notA)and(notB))or((A)and(D))or((A)and(C))or((B)and(C)and(D));
end behavioral;

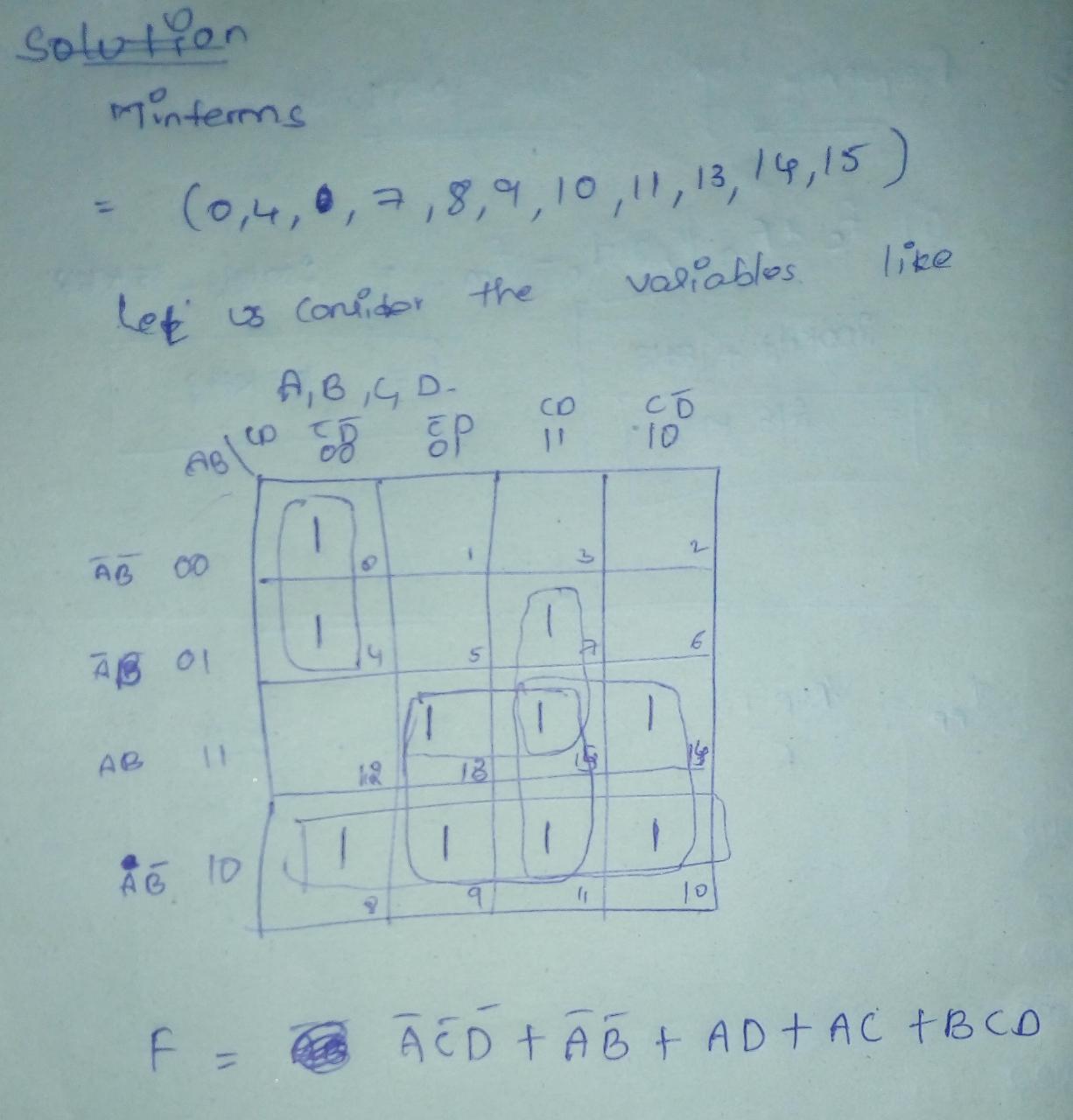

Please see the attached file for the complete solution
